CBB65 Top Cover Bulge Capacitor Start Air Conditioner Compressor

Product Categories
Changzhou Xunwande Electronics Co., Ltd
Contact Now

CBB65 Top Cover Bulge Capacitor Start Air Conditioner Compressor

  • 1
  • 2
  • 3

Brand Name : XWD - HN

Model Number : CBB65(Compressor)

Certification : UL 10000AFC / VDE / TUV / CQC /RoHS / REACH

Place of Origin : CHINA

MOQ : 10 pieces

Price : To be negotiated

Payment Terms : T/T, L/C, D/P

Supply Ability : 20000 Pieces per Day

Delivery Time : 7-20 workdays

Packaging Details : Carton / 605×305×140mm

Name : CBB65 Top Cover Bulge

Product Code : XWD - XHNCZKT046

Capacitance : 30uF

Material : Aluminum

Rated Voltage : 450VAC

Size : Φ50mm

Terminal : 250# Copper Quick-connect

Internal Potting : Oil Filing

Contact Now

CBB65 Top Cover Bulge Capacitor Start Air Conditioner Compressor With Aluminum Can

CBB65 Motor Run Capacitors (Round-Shaped, Single Capacitance Value or daul Capacitance Value).CBB65 Motor Run Capacitors feature a low-loss, self-healing Metalized Polypropylene Film dielectric system, which are castor oil-filled.The motor run capacitors with Single capacitance value are offered in voltages ranging from 240 through 660 VAC and with Single capacitance range of 0.5 to 120 microfarads. The motor run capacitors are designed to operate in continuous duty over a broad temperature range from -40°C to +85°C with full rated 50/60 Hz. AC voltage applied. CBB65 motor run capacitors offer outstanding electrical characteristics, high capacitance stability over time and temperature, and very low internal power losses (Dissipation Factor). Case is aluminum round-shaped cans and standard terminations are 2*4 terminals. it also have 1*1pin,2*2pin,4*4pin,2*3*4pin or wire.

​◾Inner anti-explosion

​◾Light weight

​◾Long life

​◾Low noise

​◾Low dissipation

Application


Widely used in the starting and operation of motors (compressors) of air conditioners, washing machines, dishwashers, fans and other electrical equipment.

CBB65 Top Cover Bulge Capacitor Start Air Conditioner Compressor

Basic Info.(Technical Parameters)

Operation temperature range -40℃～+85℃(40/70/21 40/85/21)
Rated Voltage

250VAC / 370VAC / 440VAC / 450VAC / 660VAC
Capacitance Range 5uF~80uF
Capacitance tolerance ±5% (J), ±10% (K)
Tangent of loss angle(20℃) ≤0.0020 (at 100Hz )
Insulation resistance Rc≥5000s(100V.DC 60s)
Operation life time

Class B (10000h) / Class C (3000h)
Withstand voltage between terminals 2.0Un (VAC) / 60s(CQC, VDE, TUV)
1.5Un (VAC) / 60s (UL)
between terminals and case 2.0Un+1000(VAC) / 60s(≥2000VAC)
Class of safety protection UL TUV CQC(S2)

Technical Data(mm)

Rated CAP. 250 / 300 / 370V 400 / 440 / 450V
Cylindrial Oval Cylindrial Oval
ØD H L×W×H ØD H L×W×H
10uF 30 / 40 50 / 65 51.5×31.5×55 40 65 51.5×31.5×65
15uF 35 / 40 60 / 65 51.5×31.5×65 40 75 51.5×31.5×65
20uF 40 / 45 60 / 65 51.5×31.5×75 45 75 51.5×31.5×75
25uF 40 / 45 60 / 65 51.5×31.5×75 50 75 51.5×31.5×75
30uF 45 / 50 65 / 75 71.5×45×65 50 85 71.5×45×75
35uF 45 / 50 65 / 75 71.5×45×65 50 85 71.5×45×85
40uF 45 / 50 75 / 85 71.5×31.5×75 50 100 71.5×45×85
50uF 45 / 50 75 / 85 71.5×45×85 50 110 71.5×45×100
60uF 45/ 50 75 / 85 71.5×45×100 50 120 71.5×45×100

Outline drawing

CBB65 Top Cover Bulge Capacitor Start Air Conditioner Compressor

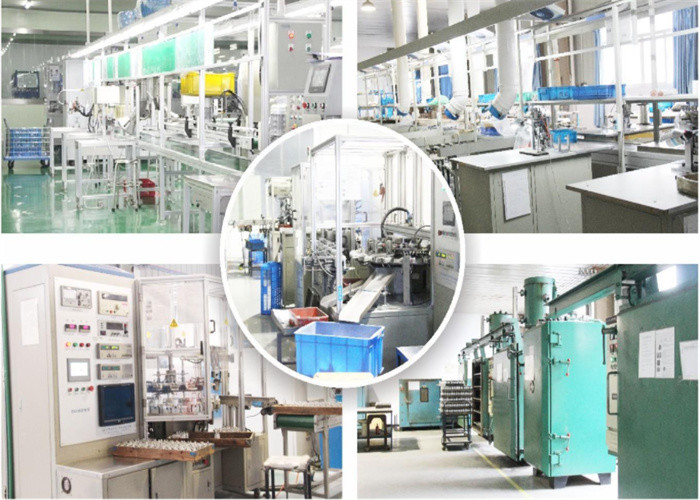

Workshop

CBB65 Top Cover Bulge Capacitor Start Air Conditioner CompressorCBB65 Top Cover Bulge Capacitor Start Air Conditioner Compressor

Shipping

CBB65 Top Cover Bulge Capacitor Start Air Conditioner Compressor

FAQ

1.How can I get the price? - Within 24 hours after we get your inquiry(Except weekend and holidays).

-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders.
5.How do you make our business long-term and good relationship?
-We keep good quality and competitive price to ensure our customers benefit ;
-We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
